Πωλειται σε αριστη κατασταση η καινουργια εγχρωμη CCD OSC camera της Starlight Xpress.

Περισσοτερες πληροφοριες εδω η στο site της Starlight Xpress :

https://www.firstlightoptics.com/starlight-xpress-cameras/starlight-xpress-trius-pro-674c-colour-ccd-camera.html



Εχει τον ιδιο σενσορα με την ATIK 428ex color και ειναι CCD (16bit) οχι CMOS



Αποφασισα να μεινω με την ATIK 383L+ mono.

Ενταξει οπως και να το κανουμε δεν μπορω να τις συγκρινω :D

Απλα δεν με εξυπηρετησε οπως θα ηθελα..

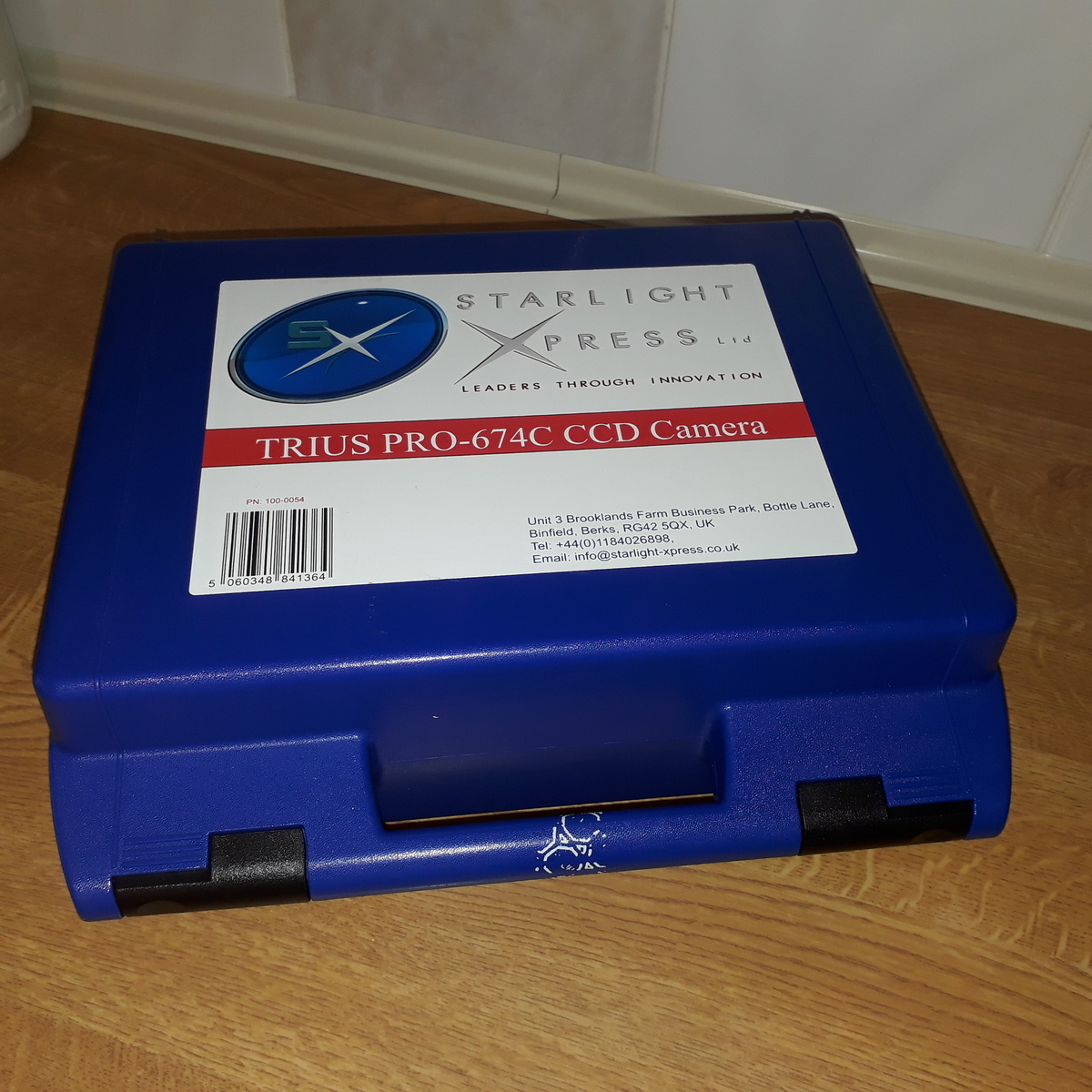

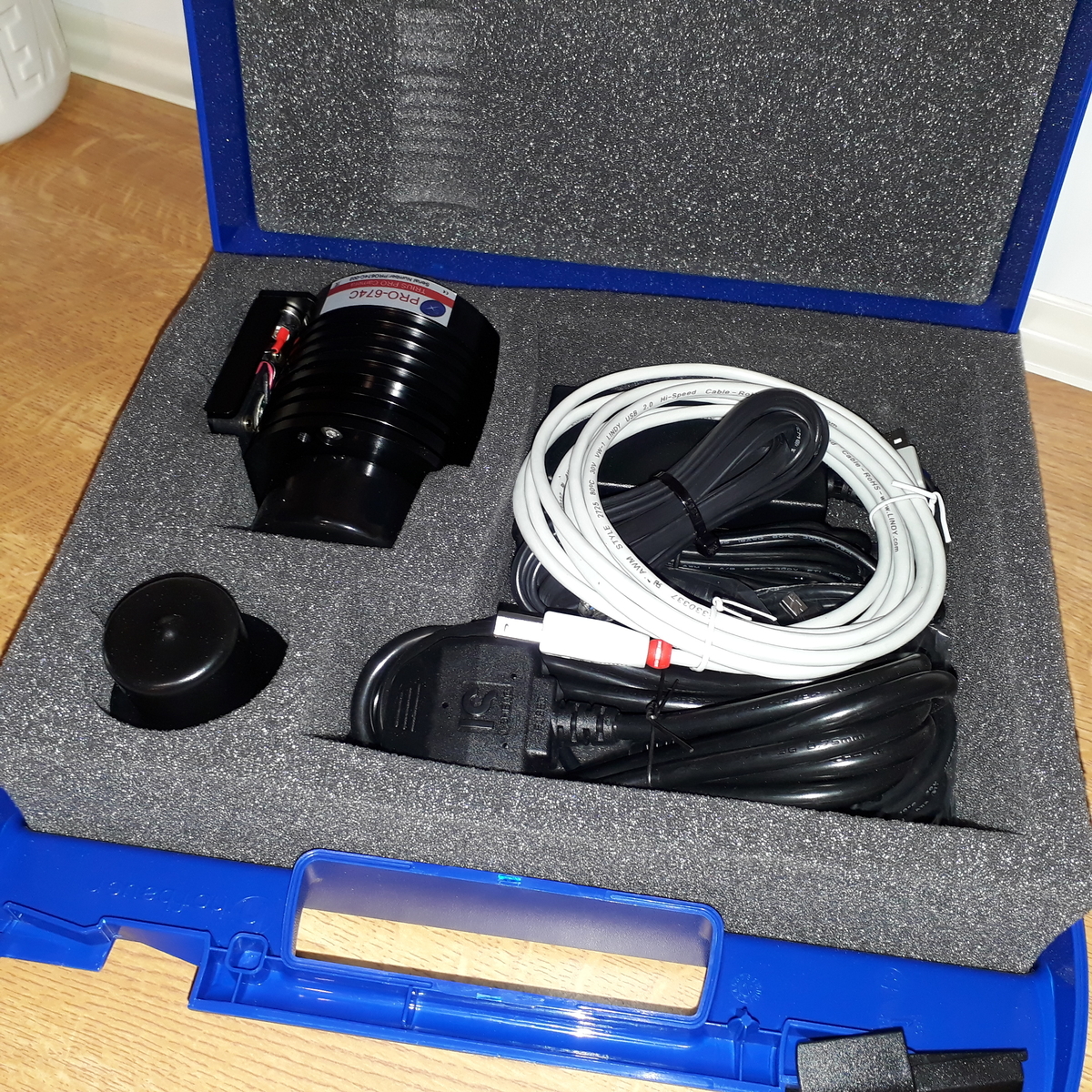

Η καμερα ειναι με το βαλιτσακι τη με ολα της τα εξτρα..

Τιμη πωλησης 1000Ευρω (νομιζω ειναι πολυ καλη τιμη).



SPECIFICATIONS :

-Built-in USB hub with three ports for USB accessories.

-Two stage cooler with dry Argon filled CCD chamber.

-Single USB cable control for all features - get rid of that dangerous cable tangle!

-Very low power consumption. Less than 1.5 amps at 12v DC.

-Compact and lightweight - only 75mm in diameter x 70mm long - less than 500 grams load on the telescope.



-CCD type: Sony ICX674ALG (mono) EXview CCD with ultra low dark current and vertical anti-blooming.

-CCD Full resolution pixel data: Pixel size: 4.54uM x 4.54uM, Image format: 1940 x 1460 pixels

-CCD Image area: 8.81mm (Horizontal) x 6.63mm (Vertical).

-CCD quality: Grade 1 or better - No bad columns, no dead pixels, no more than 50 'hot' pixels (saturated in <10 seconds).

-Spectral Response: QE max at 580nM (~77%), 50% roll-off at 360nM and 770nM.

-Readout Noise: Less than 5 electrons RMS - typically ONLY 4 electrons!

-Full-well capacity: Greater than 17,000 e- (unbinned)

-Anti-blooming: Overload margin greater than 800x.

-Dark current: Less than 0.003 electrons/second @ - 10C CCD temperature.

-Data format: 16 bits.

-System gain: 0.3 electrons per ADU

-Computer Interface: Built-in USB 2.0 compatible interface.

-Image download time: Typically 2 seconds at full resolution.

-Power requirements: 115VAC / 240VAC @ 12VA, or 12VDC @ 900mA max.

-Cooling system: Regulated set-point cooling supply with thermoelectric cooler to give a minimum CCD temperature of approximately -40C below ambient.

-Size: 75 x 70mm black anodised aluminium barrel with 42mm 'T2' thread at the CCD window end & input/output plugs at rear. CCD alignment screws are provided for setting the chip parallel to the focal plane.

-Weight: approx. 400g.



Ευχαριστω,

Νικος.

....επικοινωνια με πμ.....

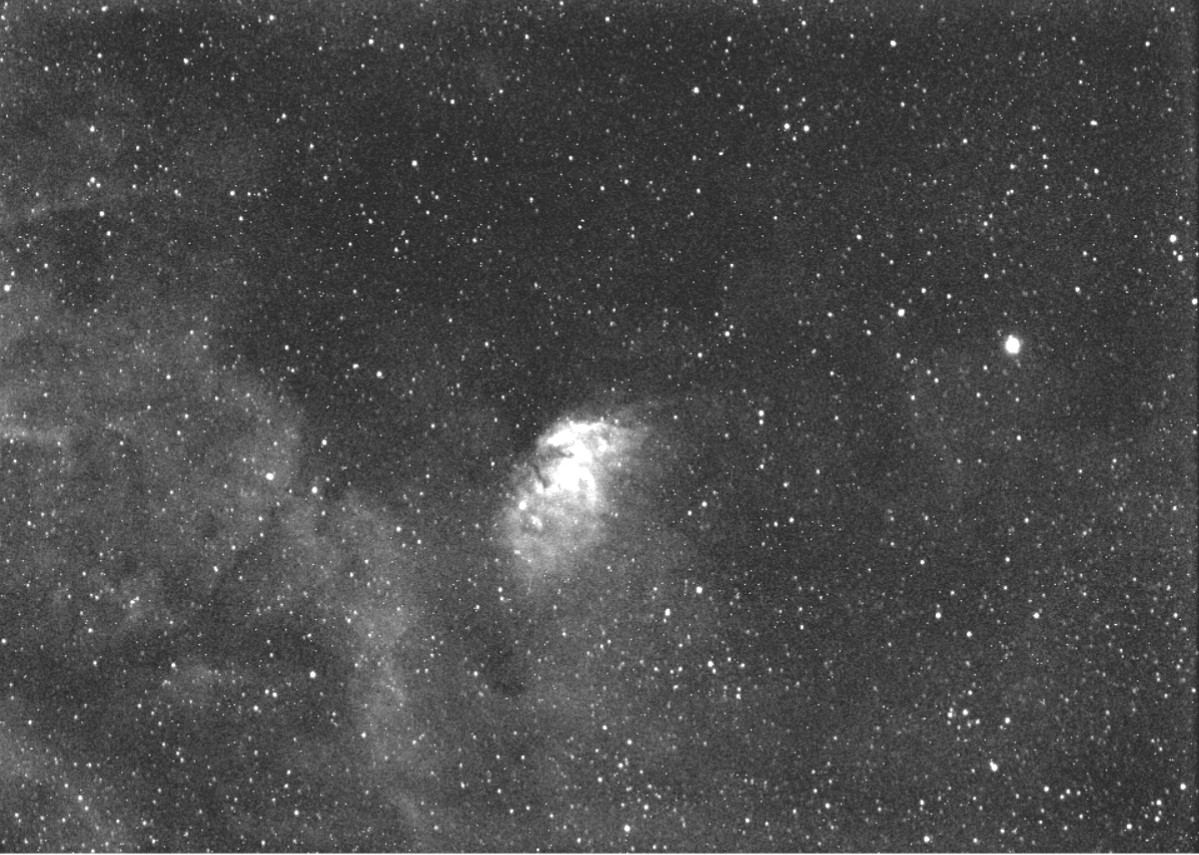

600sec

20190920_103258.thumb.jpg.770ee04593e0aac84524c50b4135642c.thumb.jpg.aae2fc93bcdf89b84bbeff5f2c9d607a.jpg

20190920_103244.thumb.jpg.c3448c597e4d965c50c61f240135c1e5.thumb.jpg.ebf0bcbf5da190ead93ce90629ee4bd2.jpg
